Testing instrumentation: the equipment that makes a grid code dossier defensible.

Every measurement in a grid code dossier is only as defensible as the instrument that produced it. Calibration traceability, sampling rate, time synchronization, channel count, power supply independence — these are the dossier-determining choices that get made before the field campaign starts.

A regulator reviewing a grid code dossier does not just look at the numbers. The reviewer looks at the provenance of the numbers — which instrument captured the measurement, at what sample rate, with what calibration traceable to which standard, time-stamped against which clock reference.

If any of those upstream details are weak, the measurement is weak. A perfectly executed test campaign can produce a dossier that fails review because the instruments behind the data weren't field-grade for the test being run. The fix at that point is not editorial — it's repeating the test campaign under correctly specified equipment.

Most projects that lose calendar time during regulator review lose it here. Not at the field site, not in the dossier authoring, but at the instrument specification one or two steps upstream.

The categories of test equipment

Seven equipment categories — each with its own failure modes.

A complete grid code test program touches roughly seven equipment categories. Each one has its own selection criteria and its own failure modes. None of them is optional for a defensible dossier.

01

High-speed transient recorders

The instruments that capture the millisecond-grade events protection coordination, inrush characterization, and AVR step-response tests rely on. They run continuously across the test window — hundreds of samples per cycle, hundreds of milliseconds of recording, multiple input channels in parallel.

Key specifications: sampling rate, bit depth, channel count, storage capacity, time-synchronization input. A recorder configured at the codified floor (16 samples per cycle, the regulator's typical minimum) will miss the harmonic content that characterizes a real first-energization event. Field-grade recorders run at 256 samples per cycle or higher.

02

Power quality analyzers

The steady-state measurement chain: voltage and current magnitudes, frequency, real and reactive power, harmonic content, flicker, unbalance, voltage variations. They run for the long observation windows grid codes require — 10 days for some power-quality measurements, 15 days for some operational tests.

Selection criteria are different from transient recorders. Accuracy class matters more than absolute sample rate. The instrument must hold a calibrated baseline over multi-day operation without drift, support continuous logging to portable storage, and accept GPS time-synchronization to align across instruments.

03

Current and voltage transducers

Between the plant's primary equipment and the test instrument sits the transducer layer — current transformers (CTs), voltage transformers (VTs), and the high-bandwidth alternatives like Rogowski coils for current and capacitive-coupled voltage transformers for voltage.

The choice of transducer determines what the downstream measurement can possibly see. A protection-class CT saturates above its rated short-time multiple — fine for protection coordination, useless for the peak of an inrush event. Rogowski coils (air-core current sensors with no saturation) are the field-grade default for transient current measurement on large transformers and generators.

04

Time-synchronization systems

GPS-synchronized timing lets multiple instruments — a transient recorder on the line side, a power analyzer at the bus, a disturbance recorder on a feeder, a separate event recorder on the breaker auxiliary — be correlated to a common time reference at the microsecond level.

Without GPS synchronization, every event time stamp becomes a negotiated estimate after the fact. With it, the dossier shows a single coherent timeline across all measurement points. Modern campaigns use GPS-disciplined oscillators with IRIG-B or PTP distribution to all participating instruments.

05

Disturbance recorders and phasor measurement units

Disturbance recorders (DFRs) trigger on protection events and capture pre-trigger plus post-trigger windows of fault data — typical at the plant's protection panels for fault analysis, also relevant as dossier evidence of how the plant responded to grid disturbances during the test campaign.

Phasor measurement units (PMUs) provide synchronized phasor measurements at 30 to 240 samples per second, GPS time-stamped. For plants participating in wide-area measurement systems, PMU data becomes part of both the dossier evidence and the operational telemetry record.

06

Excitation and governor test interfaces

The AVR step test and the governor speed-droop test require introducing controlled perturbations into the excitation reference and the governor reference, then measuring the unit's response. The test interface — a calibrated signal source coupled to the excitation system's reference input, or a frequency reference injected at the governor — is its own piece of specialized equipment.

These interfaces have to be coupled to the live control system safely (often through opto-isolation), produce repeatable step magnitudes, and provide their own time-synchronized trigger signal that ties the perturbation event to the captured response.

07

Auxiliary equipment

Beyond the primary measurement chain, a field campaign requires supporting equipment that determines whether the primary measurements can happen at all. Independent power supplies for the recording instruments (so a momentary dip on the plant auxiliary doesn't interrupt a critical capture). Insulation resistance testers for pre-energization verification. Thermal cameras for component temperature during reactive capability and capacity tests. Communication test gear for SCADA, AGC integration, and protocol-level testing.

Each of these is small compared to the primary measurement chain, but failures in this category interrupt field campaigns in expensive ways.

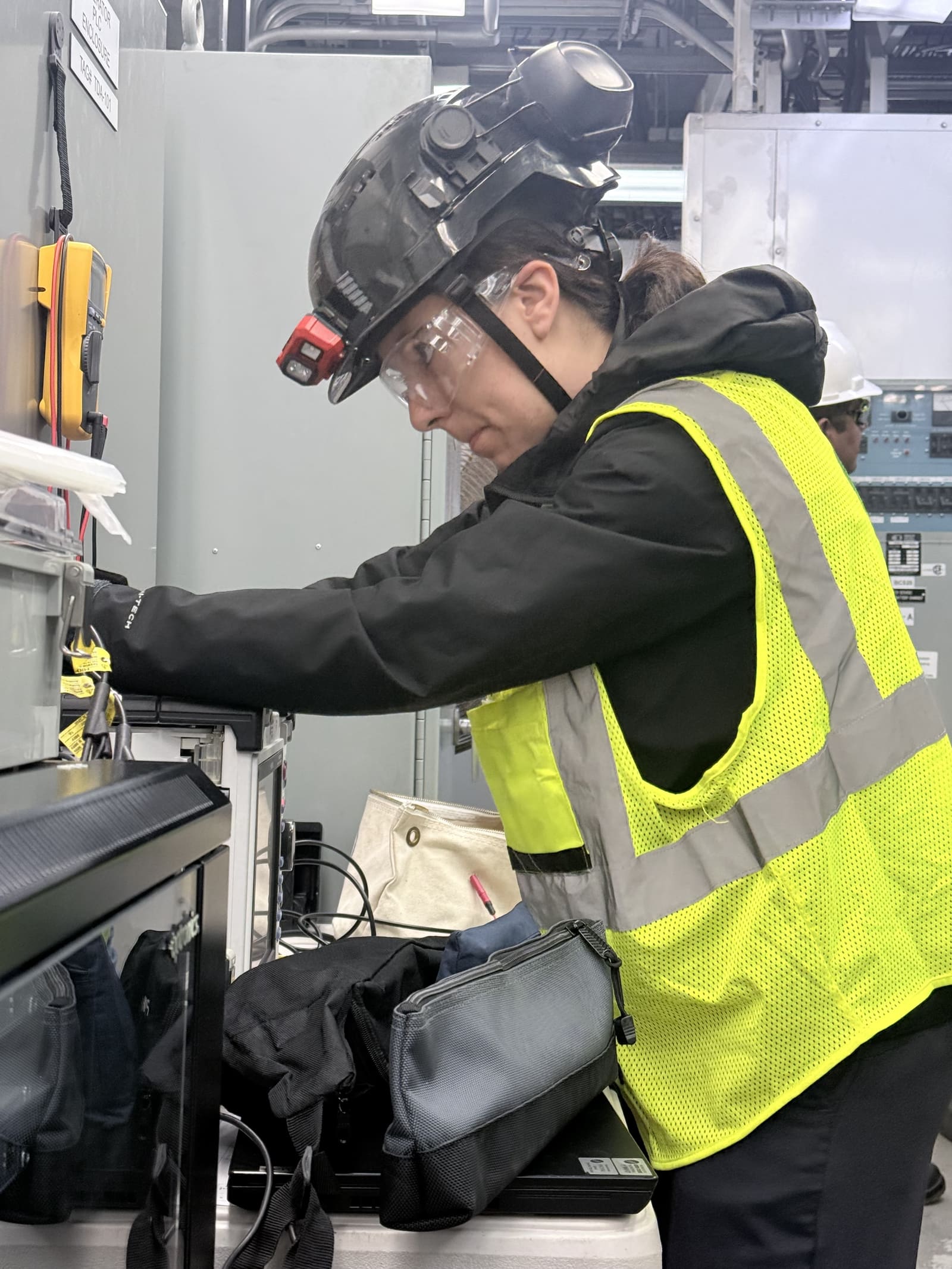

GCE field engineer connecting test equipment to a control panel during a live grid code campaign
GCE engineer wiring test instrumentation · The discipline of field-grade connection at the source

What separates field-grade from desk-grade

A transient recorder you can buy for a workbench instrument and a transient recorder you take to a substation to capture first-energization look superficially similar. The differences that matter for grid code work:

The cost difference between desk-grade and field-grade is non-trivial. The cost of using desk-grade equipment for a test that the regulator subsequently rejects is much larger.

Calibration and traceability — the part regulators audit

Every piece of equipment that produces a measurement in the dossier must carry a current calibration certificate. The certificate must:

  1. Identify the specific instrument by manufacturer, model, and serial number.
  2. Cite the calibration laboratory and its accreditation (typically ISO/IEC 17025 accredited).
  3. State the measurements verified and the uncertainty per measurement.
  4. Be dated within the verification cycle accepted by the applicable grid code (typically annual, sometimes shorter for high-accuracy instruments).
  5. Be traceable to international primary standards.

The dossier should explicitly reference each instrument's calibration certificate by certificate number for each measurement it produced. When a regulator's reviewer pulls on this thread, the document should hold — instrument identified, calibration current at the test date, traceability documented.

Calibration drift is real. Instruments degrade with time and use. Field-grade equipment includes verification routines that can be run on-site before a critical measurement; the dossier should cite the result of those verifications. For the most consequential measurements — first energization, AVR step response, reactive capability binding points — a pre-test verification against a known reference is standard practice.

What goes wrong

Five failure modes where instrumentation choices upstream the problem.

Each is avoidable with discipline at the instrument-specification stage — weeks before the field campaign begins. None of them is rare in practice.

01

Saturation on the current measurement

A protection-class CT chosen for routine measurement saturates during the inrush peak. The captured waveform truncates at the saturation level. The dossier shows a peak that doesn't match the physics, and the reviewer questions every other measurement that used the same CT.

02

Time-base discrepancy across instruments

Multiple instruments capture the event, but their time stamps differ by tens of milliseconds because they weren't GPS-synchronized. The dossier's cross-instrument correlation depends on after-the-fact alignment, which the reviewer can challenge.

03

Storage exhausted mid-campaign

A continuous recording fills storage capacity faster than expected. The event of interest happens after the recorder rolled over. The captured data does not include the moment that mattered.

04

Power supply coupling

The instrument is fed from the same auxiliary bus as the equipment being energized. The energization event causes a momentary dip on the auxiliary supply. The instrument resets mid-capture. There is no recording of the event.

05

Calibration certificate expired

The instrument was field-grade and the measurement was sound, but the calibration certificate dated to before the regulator's accepted verification window. The measurement is technically valid; the dossier still gets queried.

What this means for the engagement

Instrumentation is not a procurement decision made by the lowest-cost vendor. It is the upstream technical decision that determines whether the dossier — and therefore the regulator approval, and therefore the plant's commercial operation date — proceeds on schedule.

For owners and engineering teams reading this before commissioning: the instrumentation specification should be part of the pre-assessment scope, not a field-day decision. The test procedure should name instruments by category, accuracy class, and calibration traceability requirements. The field campaign should include a pre-test instrumentation verification step, signed off on paper before any primary measurement is taken.

The dossier reviewer never sees the instrument. They see the measurement, and they see the calibration certificate. If both are correct, the dossier holds. If either is weak, the dossier doesn't — and the calendar slips while the team explains why.

Verify against published regulation

The typical calibration cycle accepted for each instrument category (annual is most common; shorter for high-accuracy instruments), the metrology institute or accreditation body the regulator recognizes (NIST in the US, CENAM in Mexico, INTI in Argentina, equivalent national institutes elsewhere), whether the regulator's reviewer pulls calibration certificates routinely or only on challenge, and the required data formats for dossier submission (COMTRADE for fault recordings, IEEE C37.118 for synchrophasor data) should be verified against the specific regulatory framework applicable to your project. The instrumentation categories and field-grade criteria described here reflect general industry practice across regulated grid codes.

Before the field campaign starts, get the instrumentation specification reviewed by an independent team.
